Jackery Explorer 500 Portable Power Station

FEATURES
TECH SPECS
FAQ

Jackery Explorer 500 Portable Power Station charges low to high-power appliances for long hours. With a high battery capacity of 518Wh, a foldable handle, an ergonomic design, and industry-leading BMS technology, the power station is ideal for outdoor adventurers and emergency home backup solutions. It is extremely easy to carry, with a weight of just 6.4 kg.

Featured Summary

High Battery Capacity

Jackery Explorer 500 Portable Power Station features 1 * AC outlet, 2 * DC ports, 1 * car port, and 3 * USB-A ports to charge low to high-power appliances, including air pumps, CPAP machines, TV, mini-refrigerators and more. Its compact size and lightweight design make the power station ideal for road trips and RV camping.

Phone (18W)

29.4 Charges
TV (60W(

7.5 H
Blender (300W)

7 H
Space Heater (350W)

1.5 H
Projection (100W)

4.5 H
Desktop (200W)

10 H

Multi-Charging Methods

Current Bundles Recharging Time
(0-100%)

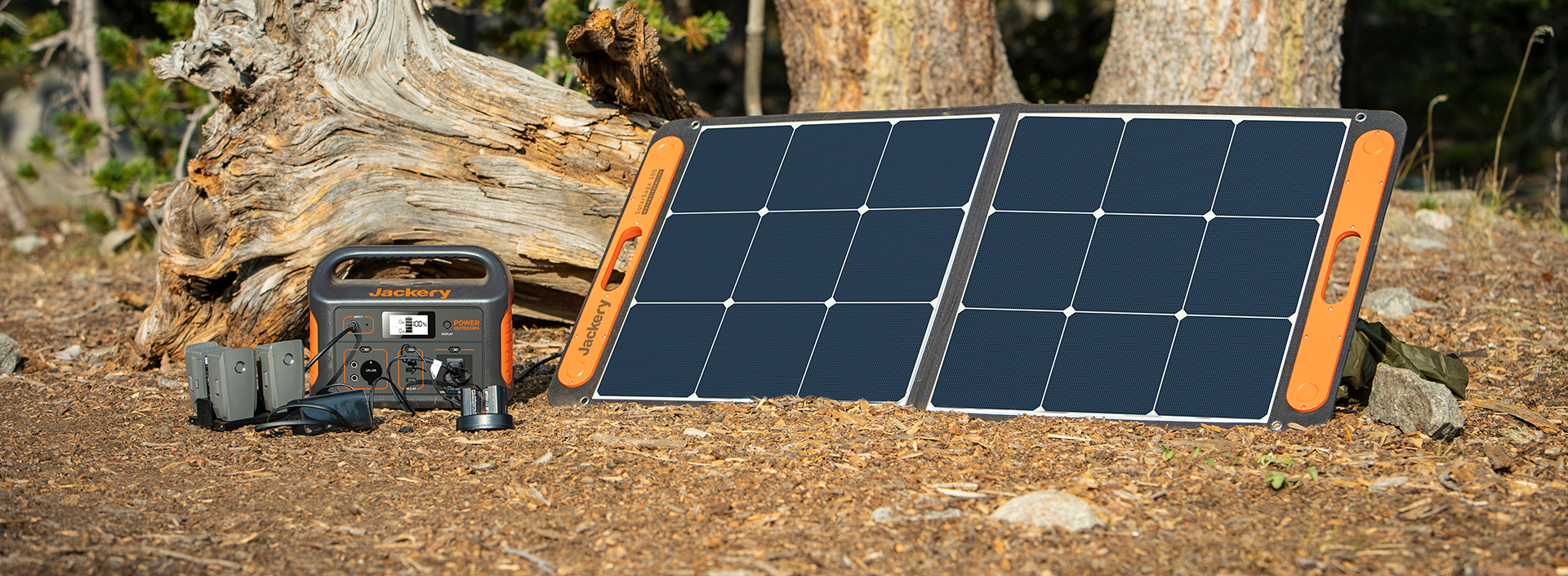

Solar Charging

9.5 H

Wall Charging

7.5 H

Car Charging

7.5 H

With Jackery Explorer 500 Portable Power Station, you'll never have to worry about finding a wall outlet for recharging. Multiple other charging methods like solar panels, car outlets, or electric generators ensure you'll have the power to charge your gear anywhere, anytime.

Long Battery Life

The best feature of the Jackery Explorer 500 Power Station is its long battery life. Even after completing 800 charge cycles, the power station will have 80% battery capacity.

Ultimate Protection

The intelligent BMS (Battery Management System) and pure sine wave inverter deliver stable power to the appliances. The state-of-the-art temperature sensors ensure the power station is suitable for extreme weather conditions.

Lightweight and Portable

Strong and Reliable

The portable power station is exceptionally durable and can withstand hot and cold temperatures. The high-quality built-in MPPT charge controller and pure sine wave inverter protect the power station against short circuits, overcharge, overvoltages and more.

Jackery Explorer 500 Portable Power Station does not emit fumes or use fuels, making it an eco-friendly and renewable power solution for camping, RV trips, off-grid living, and home backup.

Product Comparison

{{compareData.main.title}}

{{info}}
{{compareOne.title}}

{{info}}
VIEW MORE
{{compareTwo.title}}

{{info}}
VIEW MORE

Product Details

Specs in Pictures

1 LED Flashlight
2 DC Input
3 DC Output
4 Car Port
5 USB Output
6 AC Output
7 LCD Screen

Battery

Capacity: 518Wh (21.6V, 24Ah)

Cell Chemistry: Lithium-ion

Cycle life: 800 cycles to 80%+ capacity

Management System: BMS, Over Voltage Protection, Short Circuit Protection

Ports

AC Output(x1): 240V, 500W (peak 1000W)

DC Output(x2): 12V⎓7A

USB-A Output(x3): 5V⎓2.4A

Car Port(x1): 12V⎓10A

AC Input: doesn't support direct AC charging - use external AC charger provided

DC Input: 12-30V⎓6A Max

Dimensions

Weight: 6.4 kg (14.1 lbs)

Height: 30 cm (11.8 in)

Width: 19.3 cm (7.6 in)

Depth: 24.2 cm (9.5 in)

Charging Time(0-100%)

AC Adapter: 7.5 Hours

Car Adapter(12V): 8 Hours

Solar Panel: 1 x SolarSaga 100W Solar Panel: 9.5 Hours

General

Warranty: 2 Years

Operating Usage Temperature: 14-104F (-10-40℃)

Solar Panel Combination

Solar Saga 80: Up to 1 Pc

Solar Saga 100: Up to 1 Pc

What's in The Box

1 1* Explorer 500
2 1* AC & AC Cable (2 Parts)
3 1* Car Charger Cable

Notes:
1. Solar panel types and quantity depends on your purchase.
2. Buy 2 SolarSoga, get 1*Solar Panel Connectors.
3. Buy 4 or 6 SolarSoga, get 2*Solar Panel Connectors.

User Manual

BATTERY INFO

Jackery Explorer 500 Portable Power Station.pdf

DOWNLOAD

Jackery Explorer 500 Portable Power Station.pdf

DOWNLOAD

Notice

* This product (portable power supply) can supply power to your device in the temperature range of -10 to 40 degrees Celsius (-10 to 65 degrees Celsius for solar panels). If the operating temperature is outside the above range, this product may not work.

FAQ

Q: What devices can Explorer 500 power?

A: Please note that the AC output port can only charge/power devices that operate at less than 500-Watt. Once exceeding, the Explorer 500 will shut off automatically. Please refer to your device specification before purchase.

Q: How to know the working times for my device?

A: Working time = 500Wh* 0.85 / operating power of your device. For reference, assuming power consumption of your device is 60W (might be a box fan), working time will be 500Wh*0.85/60w=7hrs (rough calculated) . Please note: actual power consumption varies from different usages, please consult Jackery for better purchase decision.

Q: How long does it take to full charge this power station?

A: Within 7.5 hours from an AC wall outlet; Also another two recharge backup choices for your convenience, recharge from car port around 7.5 hours, and around within 9.5 hours from Jackery Saga 100W solar panel (Sold Separately).

Q: How do I know if my Explorer 500 is charged?

A: To check the charge level of the Explorer 500, refer to the LCD Battery Display.

Q: What type of battery is in an Explorer 500?

A: Explorer 500 contains a battery pack which consists of an array of cylindri cal 18650 lithium-ion battery cells with high energy density.

Q: Can the Explorer 500 be charged while using?

A: Yes, you can use the Explorer 500 to charge devices, while it's being re-charged at the same time.

FAQ

Q: What devices can Explorer 500 power?

Q: How to know the working times for my device?

Q: How long does it take to full charge this power station?

Q: How do I know if my Explorer 500 is charged?

A: To check the charge level of the Explorer 500, refer to the LCD Battery Display.

Q: What type of battery is in an Explorer 500?

A: Explorer 500 contains a battery pack which consists of an array of cylindri cal 18650 lithium-ion battery cells with high energy density.

Q: Can the Explorer 500 be charged while using?

A: Yes, you can use the Explorer 500 to charge devices, while it's being re-charged at the same time.
