Jackery Solar Generator 500

FEATURES
TECH SPECS
FAQ

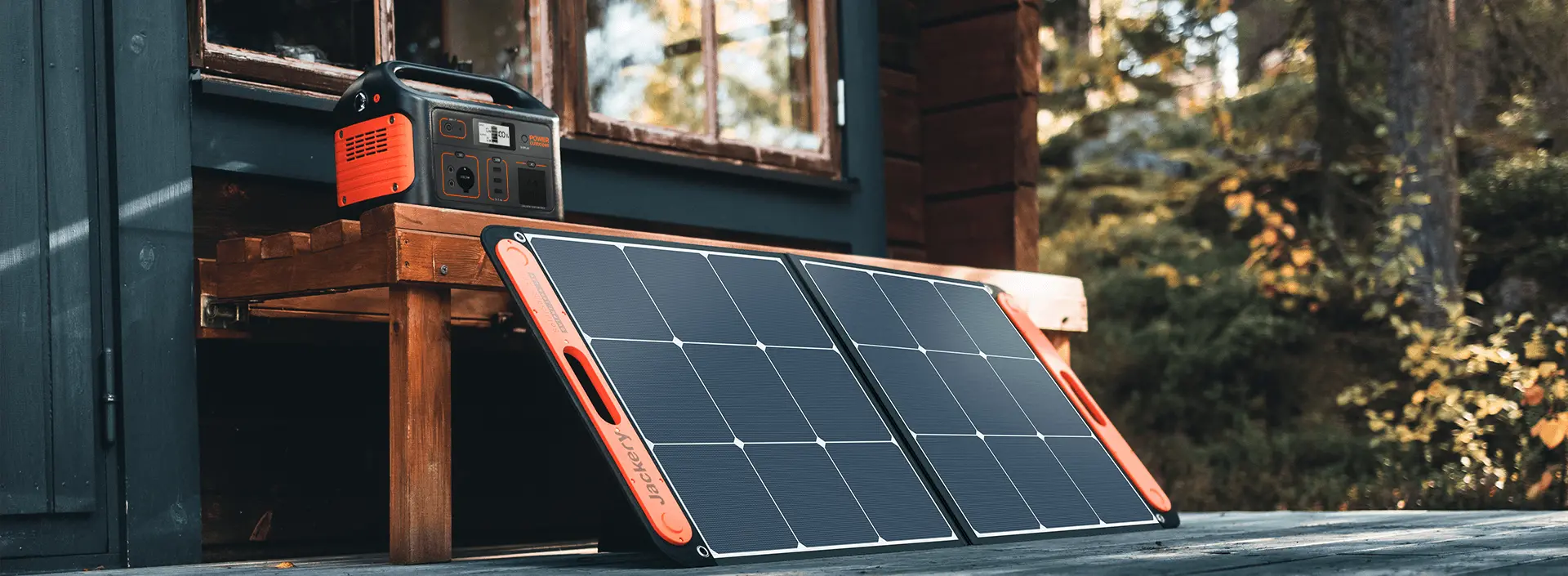

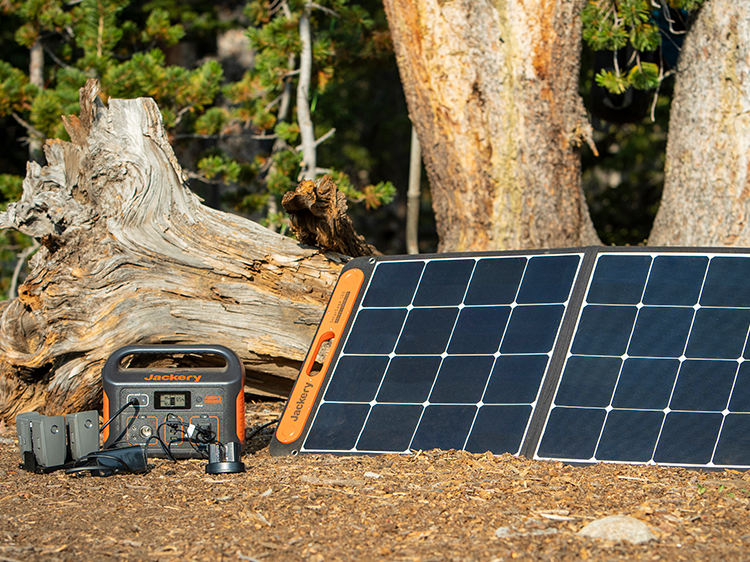

Jackery Solar Generator 500 is a solar solution that combines Explorer 500 portable power station with SolarSaga 100W solar panel. It converts sun energy by solar panels into electrical power and then stores it in the portable power station for later use. This solar generator is a reliable and clean power source for campers, RVs, or as an emergency backup.

Features Summary

Versatile Outdoor Power Supply

Features three USB ports, an AC outlet, and 12V car output - Jackery Solar Generator 500 converts solar energy to provide stable PURE SINE WAVE power to mainstream electronics and small appliances like lamps, laptops, phones, small fridges, CPAP machines, and other devices.

Blender (300W)

1.5 H
Space Heater (300W)

1.5 H
Phone (18W)

29 Charges
TV (60W)

7.5 H
Desktop (200W)

2.2 H
Projection (100W)

4.4 H

3 Ways to Recharging

Current Bundles Recharging Time
(0-100%)

Explorer 500 + 1x SolarSaga 100W Solar Panels

9.5 H

AC Adapter

7.5 H

12V Car Adaptor

7.5 H

The all-in-one portable power station features three USB ports, a 12V car output, and an AC outlet to provide stable power to the appliances. You can charge the power station using three different methods: solar panels, a car outlet, and an AC adapter.

Safe and Solid for Indoor and Outdoor

Emissions-free energy source and reliable battery management system make Explorer 500 safe even for indoor use. Made from durable material, the solar system is temperature resistant at high temperatures. The operating temperature range of the Explorer 500 power station is 14-104℉ (-10-40℃), and SolarSaga 100 is 14-149F (-10-65℃).

Compact but Powerful

Same size as a basketball, the Explorer 500 is easy to carry with its solid handle, making it a compact and reliable choice for camping, road-trips, RV, and home backup scenarios. The SolarSaga 100-watt solar panel weighs only 4.69 kg - it's lightweight, foldable, and portable, featuring an easy-carry handle.

Unlike traditional gas generators, a quiet home generator won't disturb your sleep. Solar Generator 500 produces less than 37.9dB: a quiet generator for camping or RV and is a great outdoor living investment.

Low Maintenance and Easy to Use

The lightest and most portable Jackery Solar Generator 500 is easy to maintain. All you need to do is wipe the SolarSaga solar panels and Explorer Power Station with a clean cloth to improve efficiency and harness the power of free renewable energy. Connect the solar panel to Explorer 500, and you'll a portable solar system ready in 60 seconds!

Low Maintenance and Easy to Use

Foldable solar panels are dustproof and waterproof, making them ideal for cold and humid weather conditions. The high-temperature resistance of the solar panels ensures you leverage the power of solar energy even during extremely hot conditions. The SolarSaga 100w solar panel operating usage temperature range is 14-149F (-10-65℃).

Product Details

Specs in Pictures

Explorer 500

1 LED Flashlight
2 DC Input
3 DC Output
4 Car Port
5 USB Output
6 AC Output
7 LCD Screen

SolarSaga 100W

Battery

Capacity: 518Wh (21.6V, 24Ah)

Cell Chemistry: Lithium-ion

Cycle life: 800 cycles to 80%+ capacity

Management System: BMS, Over Voltage Protection, Short Circuit Protection

Ports

AC Output(x1): 240V, 500W (peak 1000W)

DC Output(x2): 12V⎓7A

USB-A Output(x3): 5V⎓2.4A

Car Port(x1): 12V⎓10A

AC Input: doesn't support direct AC charging - use external AC charger provided

DC Input: 12-30V⎓6A Max

Dimensions

Weight: 6.4 kg (14.1 lbs)

Height: 30 cm (11.8 in)

Width: 19.3 cm (7.6 in)

Depth: 24.2 cm (9.5 in)

Charging Time

AC Adapter: 7.5 Hours

Car Adapter: 8 Hours

General

Warranty: 2 Years

Operating Usage Temperature: 14-104F (-10-40℃)

Ports

USB-A Output: 5V⎓2.4A

USB-C Output: 5V⎓3A

Solar

Peak Power: 100W

Power Voltage: 20V

Power Current: 5A

Open Circuit Voltage: 24.8V

Short Circuit Current: 5.6A

Dimensions

Folded: 610 x 535 x 35 mm

Unfolded: 1220 x 535 x 5 mm

Weight: 4.69 kg

General

Warranty: 2 Years

Materiales: Monocrystalline Silicon Solar Cells

Waterproof: IP65

Efficiency rate: 23%

Operating temperature: -10-65℃(14-149°F)

What's in The Box

1 Jackery Explorer 500
2 AC Adapter
3 Car Charge Cable
4 SolarSaga 100W

User Manual

BATTERY INFO

Jackery Explorer 500 Portable Power Station.pdf

DOWNLOAD

Jackery SolarSaga 100W Solar Panel.pdf

DOWNLOAD

Jackery Explorer 500 Portable Power Station.pdf

DOWNLOAD

Jackery SolarSaga 100W Solar Panel.pdf

DOWNLOAD

Notice

1.Solar Recharging time varies from different location, temperature, weather etc. The actual time may be different.

2. During solar recharging, keep your portable power station away from heat and direct sunlight in order to extend its life span.

3. Store in a dry and cool place, avoid contact with corrosive substances, and keep away from fire and heat sources. Avoid storing with sharp objects at the same time.

User Guide Videos / Pictures

9 appliances charged by Jackery Explorer 500 for RVer

3 different ways to recharge Jackery Explorer 500

FAQ

Q: I purchased two Jackery items (Explorer 500+Saga 100W), why did I just receive one package? Where is my stuff?

1. When purchasing the solar generator from our website or Amazon stores, all the items included in this package will be shipped in separate packages due to their size. 2. You will find only one tracking number for your order (more than 1 package). However, if you wish, we can email you all the tracking numbers. 3. Please do not hesitate to contact us via hello.au@Jackery.com or Amazon.

Q: What devices can the Explorer 500 power?

Please note that the Explorer 500's AC output can only charge/power devices that operate at less than 500 watts. As soon as this limit is exceeded, the Explorer 500 switches off automatically.

Q: How to know the working times for my device?

Working time = 518Wh * 0.85 / operating power of your device. Example: The power consumption of your device is 60W (e.g. a fan), then the working time of this device is: 518Wh * 0.85 / 60W = 7 hours (roughly calculated). Please note: Actual power consumption will vary based on usage conditions. Any questions, please contact Jackery Customer Service for better purchasing decision.

Q: How long does it take to fully charge the Explorer 500?

Charged by SolarSaga 100 solar panel in about 9.5 hours. Charged by wall outlet in about 7.5 hours. Charged by car outlet in about 7.5 hours.

Q: Is the Explorer 500 power station waterproof?

The Explorer 500 is not waterproof. Please do not store them in humid environment for longtime

Q: Is the solar panel waterproof?

The Saga 100W is not waterproof. To maximize the lifespan of the module,Please don’t make it get wet.

Q: How to clean the solar panel surface?

We mentioned this point in the manual. Please use a soft cloth to remove the dust and dirt on the surface. Use a damp cloth to wipe the surface of the solar module to remove any remaining dust or dirt. Any guano or other adhesive should be removed as soon as possible from the solar surface to avoid a reduction in performance.

Q: Why the solar can not produce 100W power when charging to Explorer 500 power station?

As you know , the solar panels are affected by many factors, such as the intensity of the light and the angle of the panel put on the ground. 100W is tested in an ideal laboratory. However, the intensity of the light constantly changes. In addition, the angle of the light illuminating the solar panel also changes with the rotation of the sun. Please try test your solar panel under the full sunlight to see, and make sure there is no shadow cast on the panel.

Q: Can the solar panel charge smartphones and tablet?

Yes, the SolarSaga 100 solar panel has 1* USB-C (5V, 3A) output and 1* USB-A (5V, 2.4A) output.

Q: Can the Explorer 500 be charged while using?

A: Yes, you can use the Explorer 500 to charge devices, while it's being re-charged at the same time.

FAQ

Q: I purchased two Jackery items (Explorer 500+Saga 100W), why did I just receive one package? Where is my stuff?

Q: What devices can the Explorer 500 power?

Please note that the Explorer 500's AC output can only charge/power devices that operate at less than 500 watts. As soon as this limit is exceeded, the Explorer 500 switches off automatically.

Q: How to know the working times for my device?

Q: How long does it take to fully charge the Explorer 500?

Charged by SolarSaga 100 solar panel in about 9.5 hours. Charged by wall outlet in about 7.5 hours. Charged by car outlet in about 7.5 hours.

Q: Is the Explorer 500 power station waterproof?

The Explorer 500 is not waterproof. Please do not store them in humid environment for longtime

Q: Is the solar panel waterproof?

The Saga 100W is not waterproof. To maximize the lifespan of the module,Please don’t make it get wet.

Q: How to clean the solar panel surface?

Q: Why the solar can not produce 100W power when charging to Explorer 500 power station?

Q: Can the solar panel charge smartphones and tablet?

Yes, the SolarSaga 100 solar panel has 1* USB-C (5V, 3A) output and 1* USB-A (5V, 2.4A) output.

Q: Can the Explorer 500 be charged while using?

A: Yes, you can use the Explorer 500 to charge devices, while it's being re-charged at the same time.
